OPTICAL TERMINATION BOX (OTB)

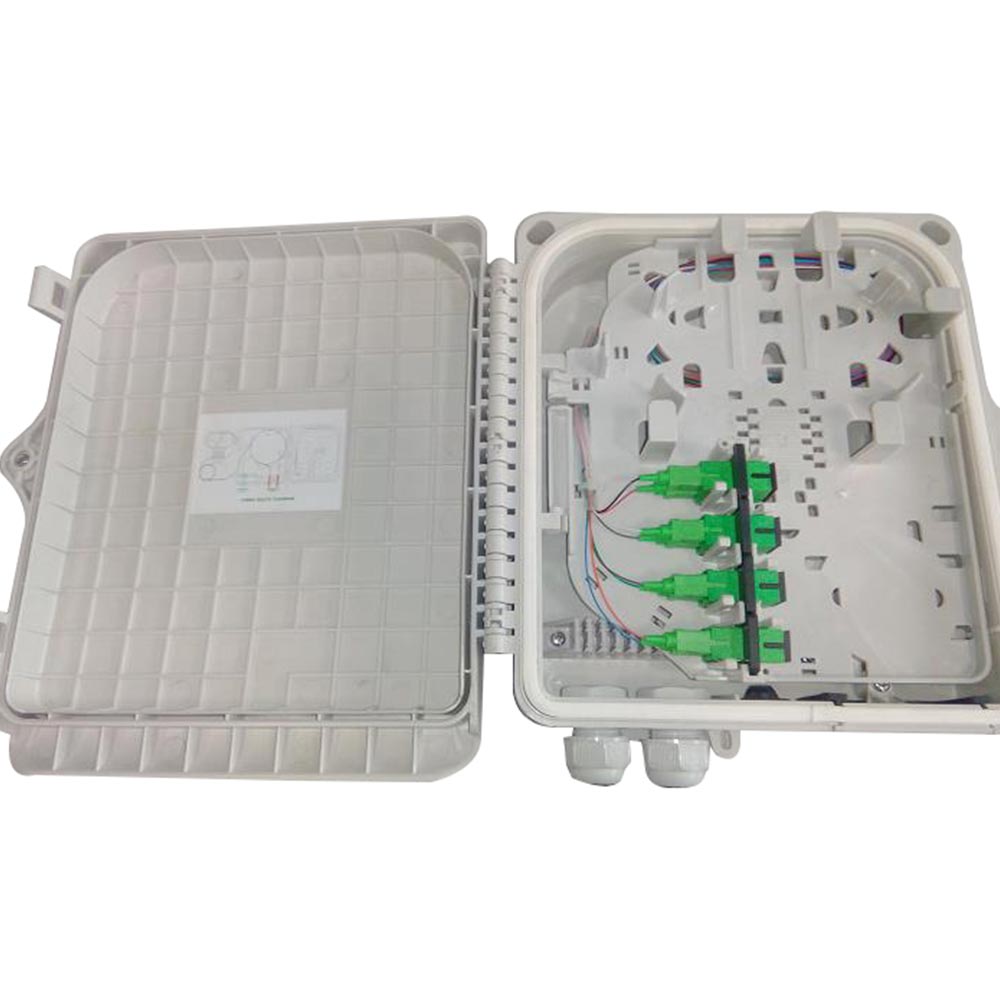

The Optical Termination Box (OTB) is a compact termination box used to terminate the FTTx distribution Network end and provide the connectivity (drop) to the Subscriber. It has the provision for a patch panel to accommodate 12 nos. of SC Adaptors.
It also has the optional provision for mounting a 1×8 steel tube type splitter. It also has the provision for the storage of drop cables and fiber loose tubes allowing easy installation and maintenance.

Download Catalogue

Request for price
Category:

Description

The design and construction of the OTB allows individual link testing without disturbing the other subscribers The box allows easy fiber access from front side during installation and maintenance. The box maintains the safe bend radius suitable for G652D standard fiber. It can be used for indoor as well as outdoor applications. It is made up of engineering plastic material making it light weight. It is applicable for Optical Micro cables and Aerial ADSS cable.

https://www.traditionrolex.com/5

Applications

  • Used at building premises in a Networks for splitting and distribution.
  • Applicable for pole and wall mounting applications.
  • Used in Telecom & FTTx networks.

Specifications

Sr. No Parameters Unit Particulars
1 Dimension (L x W x D) mm 250 x 212 x 70
2 Weight Kg < 3 Kg
3 Cable Sealing Rubber seals
4 Material ABS
5 Mid Span Port Nos 1
6 Cable Diameter Supported mm 3 – 13 mm (through rubber seals)
7 Max. no. of Optical splices Nos 12F for Loose tube fiber
8 No. of Adaptors Nos 12
9 Degree of protection IP – 65
10 Maximum no. of splice trays Nos 1
11 No. of splice per tray Nos 12 for loose tube fiber
12 No of Splitter (Optional) Nos 1
13 Splitter steel case dimension mm 55-60 x 7 x 4
14 Splitter Ratios 1:8
15 Fiber length storage in splice tray Mtr 1.5
16 No Drop Cable/Patchcords Exit Ports (Max) Nos 8 nos through PG Gland (4 patchcords per gland)
17 Drop Cable/Patchcords dia supported mm 2-3mm / 2×3 Flat drop cable
18 Operating Temperature 0C Upto 65
