FIBER DISTRIBUTION CABINET (FDC)

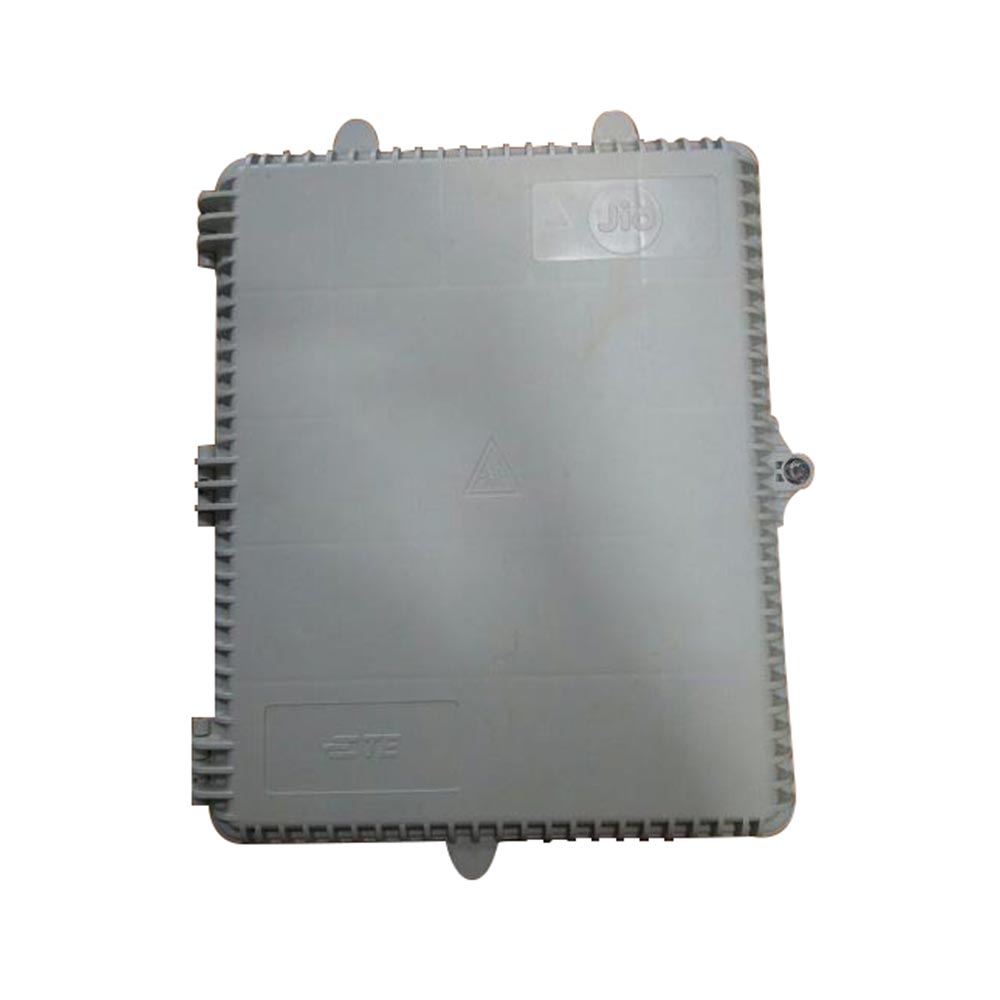

The FDC is a multi-purpose fiber distribution cabinet and is used for straight joint, branch joint, and mid-span of the Optical cables and providing distribution connectivity in the FTTx network.
It is compact, lightweight and its construction is robust and rigid having a high strength for all conditions of Storage, Transport, Installation, and Operation. It also facilitates access to the trays without disturbing other trays, cables, tubes, or fibers.

Download Catalogue
Request for price
Category:

Description

The design and construction of the FDC allows fusion splicing, splitting and storage of tubes and fibers. The FDC has the provisions for entry of Optical cables of various types & sizes for both Underground and Aerial applications.

The splice trays of the FDC maintains the safe bend radius suitable for G652 standard fiber.

It has the provision for mounting splitters with various splitting ratios such as 1:2, 1:4(2:4), & 1:8(2:8). It has provision for 6 nos of SC Duplex Adaptors.It has provision for 1 no Mid-span port and 10 nos Distribution ports. The cable entry ports is sealed mechanically with the use of sealing gel.

The sealing mechanism is easy to implement and allows to open and seal the cable entry ports quickly during maintenance.

Applications

  • Used at Distribution Networks for splitting and distribution.
  • Applicable for pole and wall mounting applications.
  • Used in building premised in a FTTx networks.

Specifications

Sr. No Parameters Unit Particulars
1 Dimension (L x W x D) mm 380 x 320 x 95
2 Weight Kg < Kg
3 Cable Sealing Rubber seals
4 Material ABS
5 Grounding Yes
6 Mid Span Port Nos 1
7 Cable Diameter Supported mm 3 – 15 mm (through rubber seals) *
8 Total no. of Optical splices Nos 24F for Loose tube fiber
9 Degree of protection IP – 65
10 Maximum no. of cable entriesn Nos 8
11 No. of splice per tray Nos 12 for loose tube fiber
12 No of Splitter Trays Nos 4
13 No of splitters per tray Nos 1
14 Splitter Ratios 1:8 or 2:8,
15 Fiber length storage in splice tray Mtr 1.5
16 No Distribution Cable Exit Ports Nos 10
17 No of Adaptors Nos 6
18 Type of Adaptors SC/APC Duplex
19 Size of Splitter casing supported mm 55 – 65 x 7 x 4
20 Operating Temperature 0C Upto 65
